In the rapidly evolving world of electronics, the demand for efficient, compact, and reliable components is higher than ever. High-frequency circuits, such as those used in communication devices, power electronics, and advanced signal processing, require components that can operate effectively at MHz or even GHz ranges. Among these components, the ferrite core inductor plays a crucial role. Selecting the right ferrite core inductor for high-frequency circuits can significantly impact circuit performance, efficiency, and longevity. This article explores how to choose the best ferrite core inductor tailored for high-frequency applications by explaining its characteristics, core materials, design considerations, and practical tips.

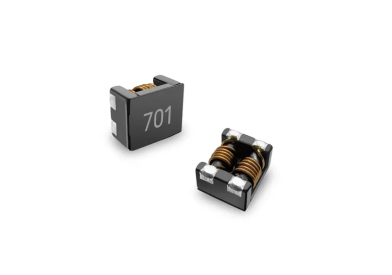

A ferrite core inductor is an electronic component that consists of a coil of wire wound around a ferrite material core. Ferrite is a type of ceramic compound composed primarily of iron oxide mixed with other metal oxides such as manganese, zinc, or nickel. This magnetic material has high magnetic permeability and low electrical conductivity, making it ideal for use at high frequencies.
Inductors store energy in their magnetic field when electrical current passes through their coils. They resist changes in current, providing essential filtering, energy storage, and impedance matching functions in circuits. Ferrite cores enhance the inductor’s ability to concentrate magnetic fields, which improves inductance and reduces losses, especially at higher frequencies.
High-frequency circuits, operating in ranges from hundreds of kilohertz to several gigahertz, present specific challenges that require specially designed inductors. Ferrite core inductors are widely used in such circuits because they offer several advantages:
High Magnetic Permeability: Ferrite materials have high permeability, which allows inductors to achieve high inductance values in a compact size.
Low Eddy Current Losses: Unlike metal cores, ferrite’s ceramic nature suppresses eddy currents, minimizing power losses at high frequencies.
Reduced Core Losses: Ferrite cores exhibit low hysteresis losses in the frequency ranges typical of RF and switching power circuits.
Compact and Lightweight: The efficient magnetic properties allow for smaller, lighter components without sacrificing performance.
Good Thermal Stability: Ferrite cores maintain performance over a wide temperature range, which is crucial in high-power and variable environments.
Because of these traits, ferrite core inductors are found in power converters, RF circuits, switching power supplies, and signal filtering devices.
Choosing the right ferrite core inductor for your high-frequency circuit involves evaluating multiple factors. These considerations help optimize performance and ensure the component meets the specific demands of your application.
The operational frequency is the most critical factor in inductor selection. Ferrite materials come in different types, each optimized for certain frequency bands. For example, manganese-zinc (MnZn) ferrites perform well at lower frequencies (up to a few MHz), whereas nickel-zinc (NiZn) ferrites are better suited for higher frequencies (tens of MHz and above).
Selecting the proper ferrite material ensures minimal core losses and stable inductance across your target frequency range. Using the wrong core type can lead to excessive heat generation, signal distortion, and energy loss.
The inductance required depends on your circuit’s function. Filtering applications might require inductors with different values than those used for energy storage in switching regulators.
It’s essential to check the inductance tolerance, typically expressed as a percentage (e.g., ±10%). Precision in inductance is crucial in high-frequency circuits where small variations can lead to significant performance issues.
Inductors have a maximum current they can handle before the core saturates. Saturation occurs when the magnetic material cannot store any additional magnetic flux, causing the inductance to drop sharply. This leads to increased current flow, heating, and possible circuit damage.
High-frequency circuits often involve pulsed or high transient currents. Choose an inductor with a saturation current rating comfortably above your peak current to prevent distortion and failures.
DC resistance refers to the inherent electrical resistance of the coil wire. Lower DCR means less power loss and heat generation, enhancing efficiency. However, lower resistance often requires thicker wire or more turns, which might increase size and cost.
Balancing DCR with inductance and size constraints is vital to optimize your design.
The Quality factor (Q) of an inductor measures how effectively it stores energy relative to how much it loses. A higher Q means lower energy losses, which is important in RF and resonant circuits.
Ferrite core inductors designed for high-frequency use generally have high Q values, but this can vary depending on the specific core material and construction.
Space constraints often dictate the physical size and form factor of the inductor. Surface mount devices (SMD) are common for compact circuit boards, whereas through-hole inductors might be used in higher power applications.
Ensure the inductor’s size aligns with your PCB layout and thermal management strategy.
High-frequency circuits may generate considerable heat, and the inductor itself can be a source of thermal buildup. Ferrite cores generally offer good thermal stability, but you should check the maximum operating temperature and consider the ambient conditions in your application.
Some ferrite core inductors come with magnetic shielding to reduce electromagnetic interference (EMI) with other components. If your circuit operates in a noisy environment or requires minimal signal interference, choose a shielded inductor.
Understanding the typical uses of ferrite core inductors helps clarify why choosing the right inductor matters.
Switching regulators rely on inductors to store and transfer energy efficiently. Ferrite core inductors minimize core and copper losses, improving conversion efficiency and reducing heat.
Ferrite core inductors shape signal responses in RF transmitters, receivers, and filters. High Q and stable inductance ensure minimal signal distortion and precise frequency control.
In DC-DC converters, inductors smooth out voltage and current ripple. Ferrite cores help maintain efficiency at high switching frequencies, which supports compact and lightweight power modules.
Inductors form part of tuning and matching circuits in communication systems, where consistent inductance and low loss are essential for reliable data transmission.
Datasheets provide detailed electrical and mechanical specifications, including inductance values, saturation currents, DC resistance, and thermal ratings. Compare multiple parts to find the best fit for your requirements.
Testing inductors under actual operating frequencies and currents helps identify real-world performance. Measure inductance, losses, and temperature rise in a prototype to avoid surprises in production.
Choose inductors from reputable manufacturers with quality certifications. Reliable suppliers like Shenzhen Gantong Technology Co., Ltd. ensure consistent product quality and technical support.
High-frequency components may degrade over time or due to environmental stresses such as humidity and vibration. Select inductors rated for your intended application environment to maximize lifespan.
Selecting the right ferrite core inductor for high-frequency circuits is a complex but essential task. Understanding the material properties, electrical characteristics, and application requirements ensures that you pick an inductor that maximizes performance and reliability. Properly chosen ferrite core inductors reduce energy losses, minimize interference, and improve thermal stability—key factors in today’s sophisticated electronic systems.
For engineers and designers seeking dependable, high-quality ferrite core inductors, working with trusted suppliers like Shenzhen Gantong Technology Co., Ltd. can provide the technical guidance and product assurance necessary for successful project outcomes. As technology continues to advance, the importance of selecting the appropriate ferrite core inductors will only grow, driving innovations across industries such as telecommunications, automotive, and renewable energy.
