Understanding Power Inductors: Types And Applications in Modern Electronics

In the fast-paced world of modern electronics, power efficiency, miniaturization, and reliability are vital. Behind the scenes, one unsung component plays a crucial role in making this possible: the power inductor. Though often overlooked, power inductors are indispensable in many electronic circuits, helping regulate current, suppress noise, and ensure stable operation of devices ranging from smartphones to electric vehicles. This article offers a detailed yet accessible exploration of what power inductors are, the different types available, how they work, and where they are used in today’s technology-driven world.

What Is a Power Inductor?

At its core, a power inductor is a passive electronic component that stores energy in a magnetic field when current passes through it. It opposes sudden changes in current, which makes it highly valuable in applications where power flow needs to be smooth, stable, and noise-free.

Power inductors are especially designed to handle higher currents and power levels than standard inductors. They are most commonly found in DC-DC converters, switching power supplies, and energy storage circuits, where they regulate voltage and current with minimal energy loss.

Unlike general-purpose inductors, power inductors are built with low resistance wires, specialized magnetic cores, and robust packaging to manage heat dissipation and mechanical stress.

How Power Inductors Work

Power inductors operate on the principle of electromagnetic induction. When a current flows through the coil of the inductor, it creates a magnetic field around it. If the current changes (increases or decreases), the magnetic field changes accordingly, inducing a back electromotive force (EMF) that opposes the change in current.

This behavior smooths out fluctuations in current and helps maintain a consistent power supply. In switching power supplies, for example, inductors momentarily store energy during the “on” phase and release it during the “off” phase, thereby converting voltage levels efficiently.

Key Performance Parameters

When selecting a power inductor, understanding key parameters is critical:

• Inductance (L): Measured in microhenries (µH) or millihenries (mH), this defines how much energy an inductor can store.

• Saturation Current (Isat): The maximum current an inductor can handle before the core saturates and loses inductance.

• Rated Current (Irms): The maximum current the inductor can carry continuously without overheating.

• DC Resistance (DCR): The resistance of the wire winding. Lower DCR means lower energy loss and heat.

• Core Material: Influences frequency performance, efficiency, and thermal behavior.

Types of Power Inductors

Power inductors are available in several types, each suited for specific functions. Let’s examine the most common ones.

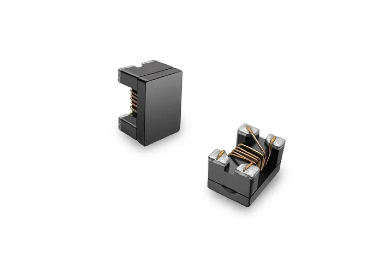

1. Wire-Wound Power Inductors

These are the most common type. A copper wire is wound around a magnetic core—often ferrite or powdered iron. They offer:

• High current handling

• Low DCR

• Good frequency stability

Applications: DC-DC converters, LED drivers, and power modules in consumer electronics.

2. Multilayer Power Inductors

Built by stacking multiple ceramic layers with embedded metal traces, these inductors are compact and suited for surface-mount technology (SMT).

• Excellent for high-frequency circuits

• Small size, ideal for smartphones and tablets

• Lower current handling compared to wire-wound types

Applications: RF circuits, Bluetooth modules, and mobile device power management.

3. Thin-Film Inductors

Manufactured using semiconductor-like processes, thin-film inductors offer:

• Precise inductance values

• Very small form factor

• Consistent performance across frequencies

Applications: High-frequency signal processing, wearable electronics, and precision sensors.

4. Toroidal Inductors

These use a doughnut-shaped magnetic core, which confines the magnetic field within the core.

• Low electromagnetic interference (EMI)

• High efficiency

• Suitable for high-current applications

Applications: Power amplifiers, inverters, and solar energy systems.

5. Shielded vs. Unshielded Inductors

• Shielded Inductors include a magnetic or metal casing to contain electromagnetic radiation and reduce EMI, critical in densely packed circuits.

• Unshielded Inductors are more economical and used in environments where EMI is less of a concern.

Applications of Power Inductors in Modern Electronics

Power inductors are vital in many areas of electronics. Below are some of their most important applications.

1. Switching Power Supplies

In switch-mode power supplies (SMPS), inductors are used in buck, boost, or buck-boost configurations to convert voltage levels with high efficiency. The inductor stores energy during switching and helps regulate output voltage with minimal ripple.

2. DC-DC Converters

These converters step up or step down DC voltage. Power inductors are used to smooth out the pulsating current from the switching elements and maintain steady output.

Applications: Battery-powered devices, automotive electronics, and industrial control systems.

3. Energy Storage and Transfer

Inductors store energy in the form of magnetic fields. They are used to transfer this energy in pulsed systems like flyback converters or resonant circuits.

Applications: Backup power supplies, smart meters, and motor control units.

4. Electromagnetic Interference (EMI) Filtering

Power inductors suppress high-frequency noise in circuits, especially in power lines. Their ability to block AC signals and pass DC makes them useful in common-mode chokes and EMI filters.

Applications: Medical equipment, communication devices, and military electronics.

5. Electric Vehicles and Automotive Systems

Modern vehicles use a variety of high-frequency systems for battery management, infotainment, and drive control. Power inductors support these systems by ensuring clean, regulated power under varying load conditions.

Applications: EV battery chargers, ABS systems, onboard chargers, and power steering.

6. Consumer Electronics

From laptops to smartphones, power inductors help manage voltage, regulate battery power, and minimize size while ensuring performance.

Applications: Portable devices, gaming consoles, wearables.

7. Renewable Energy Systems

Inverters and power optimizers for solar panels and wind turbines rely on power inductors for energy conversion and storage.

Applications: Solar inverters, grid-tied energy systems, and wind turbine controllers.

Factors to Consider When Choosing a Power Inductor

Choosing the right power inductor involves balancing multiple design parameters:

• Circuit Type and Voltage Range: Understand the topology of your power supply—whether it's a buck, boost, or other converter—and the input/output voltage levels.

• Load Current: Select an inductor with rated and saturation current values above your maximum expected load.

• Frequency: Higher frequencies require smaller inductors but may increase core losses. Ensure the chosen inductor performs efficiently at your operating frequency.

• Thermal Performance: Look for inductors with good heat dissipation capabilities if your circuit operates under high power or enclosed conditions.

• Form Factor: Match the inductor’s size and mounting type (SMD or through-hole) to your PCB layout and manufacturing process.

• EMI Requirements: Choose shielded inductors for sensitive environments to reduce electromagnetic emissions.

• Reliability and Certifications: For applications in automotive or medical fields, inductors must meet safety and reliability standards such as AEC-Q200.

The Future of Power Inductors

With the rise of technologies such as 5G, electric vehicles, and the Internet of Things (IoT), demand for high-performance power inductors continues to grow. Innovations focus on:

• Miniaturization: Smaller inductors for compact electronics

• Higher efficiency: Reducing core losses and DCR for better thermal performance

• Advanced materials: Ferrite blends and nanocrystalline cores to handle higher frequencies and temperatures

Manufacturers are also developing automated quality control processes and tighter tolerance components to meet the growing complexity of electronic designs.

Conclusion

Power inductors are fundamental building blocks in modern electronic design. Whether you're building a smartphone charger or a high-power motor controller, understanding how inductors work and how to choose the right one is key to ensuring optimal performance and reliability.

From selecting the right core material to evaluating current ratings, engineers must consider many factors when integrating power inductors into their designs. As technology advances, the role of power inductors in ensuring efficient energy management and system stability will only become more critical.

For those seeking reliable, high-performance power inductors tailored to a wide range of applications, Shenzhen Gantong Technology Co., Ltd. offers a robust portfolio of solutions. Known for quality craftsmanship, technical expertise, and commitment to innovation, Shenzhen Gantong is a trusted partner in helping you power the future of electronics.
