Home » Molded Inductor

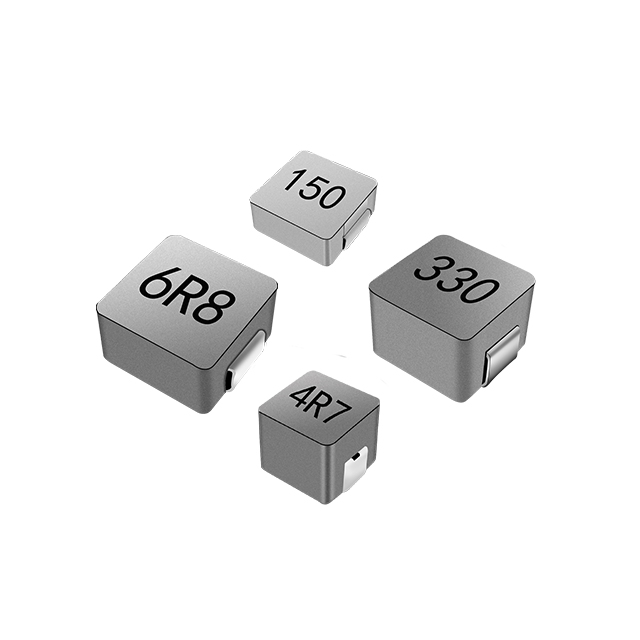

Molding Power Choke


Product Application

The y are widely used in computers, communication equipment, consumer electronics, automotive electronics and other fields. In these applications, one-piece inductors are used to realize EMI/RFI suppression, DC/DC converters, voltage regulators, filters, and other functions.
Series Inductance(μH) Isat(A) Irms(A) Length(mm) Width(mm) Height(mm) SPEC
GPSRAP0315 0.56~3.3 8.0~3.0 5.0~2.0 3.6 3.2 1.5 GPSR-AP0315-Series.pdf
GPSRAP0520 0.47~10.0 11~2.6 9~2.0 5.2 4.7 2.0
GPSRAP0420 0.1~10.0 22~2.5 12~1.5 4.3 4.0 2.0
